Description

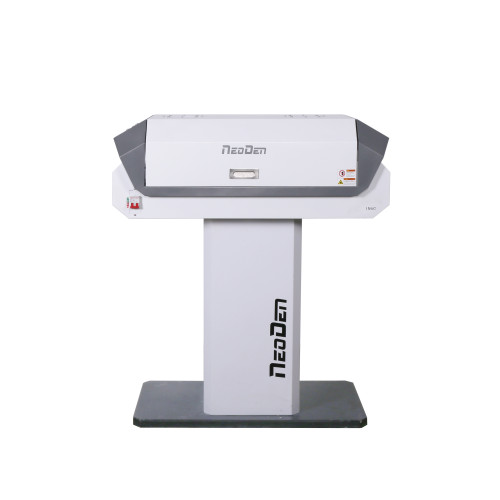

The IN6C reflow oven combines many large oven features in a compact and affordable solution that’s optimized for prototyping and small batch production and provides additional capability on top of the IN6 base features. The oven comes standard for tabletop operation or is available with a pedestal stand. A series of machine top air filters process the exhaust so that the machine can be operated in most environments without requiring exterior venting. If required, the machine can be vented to exhaust infrastructure. Replacing the mesh wire conveyor found on the IN6, the IN6C features an adjustable rail feed conveyor system, which allows for double sided PCBs as well as adding external conveyors to both input and output stages for increased automation.
Proven Technology
The oven uses nichrome wire heating elements to maintain even heat distribution for consistent soldering. Each of the six heating zones is independently programmable for preheat, soak, and reflow. Controlled heating of the PCB reduces stresses on thermally sensitive devices and allows for lower reflow temperatures that prevent pad lifting, delamination and burning. Zone temperature programming and monitoring is available using the LCD user interface mounted on the machine end panel. Six zone technology and a comprehensive full color user interface for configuring the heating profiles are standard IN6C features that are not typically found on small format reflow ovens.
Features
- Operates on 220VAC*
- Features a user interface with LCD display for precise control over six independent heating zones
- Standard tabletop version is lightweight, weighing just __ pounds
- Reaches operational temperatures in 25 minutes
- Adjustable rail feed conveyor system
- User-configurable conveyor system for __ mm per minute travel through various heating stages
- Can accommodate boards up to __ mm wide
- Offers easy access to the full conveyor length and internal components with a hinged hood that lifts
What’s in the box?
- IN6C Reflow Oven
- IEC mains cable
*For use with 120VAC, please contact us about optional 120VAC adapter
