Description

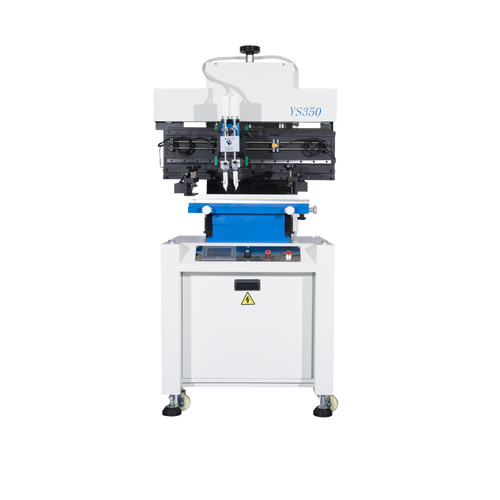

YS Series semi-automatic stencil printers are as simple to program as they are to operate. Use the 5-inch color front panel touch screen to configure a variety of actions for the dual 10-inch squeegees and the pneumatic stencil frame holder. The configuration options include squeegee down pressure for paste application, print stroke travel and print-clean stroke duration along with the cycle intervals. Manual operations include the initial set-up of the vernier print table configuration for x-y-z axis positioning plus consumables replenishment and runtime insertion and removal of the PCB’s. : The YS350 printing table accommodates PCBs up to 400mm x 240mm.
Features
- Stencil single and double-sided PCBs
- Accommodates PCBs up to 400mm x 240mm
- Works with a range of paste formulations and PCB sizes
- Stainless steel table construction holds registration pass after pass
- Microprocessor PLC controlled
- 5 Inch color touchscreen GUI for simple programming
- Track your print count, cleaning intervals, configure L/R squeegee print and clean routine, set start/stop times and paste application pressure
- 3-axis table alignment for precise registration and stencil to PCB contact
- Emergency Stop can be made at any point in the application cycle
- Park the applicators and gantry fixture for easy visual inspection
What’s in the box?
- Pallet knife for paste application
- Two 10 inch squeegees for paste distribution
- Five table mount PCB locater fixtures with cap head bolts and PCB locating pins
- Fifteen additional flex pins to support larger PCBs. Additional fixtures and flex pin kits are available for panelized PCBs.
- 110V to 220V step-up mains transformer
